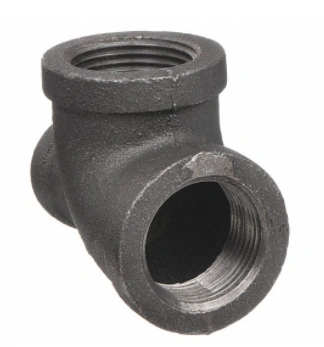

Malleable Iron Reducing Tee, 1-1/2 x 3/4 Inch, 150 LB
Key Specifications / Features
Model No.: Hits: 7
Malleable Iron Reducing Tee Maker: ASME B16.3 Reducing Tee, Malleable Iron, 1-1/2 Inch x 3/4 Inch x 1-1/2 Inch, Class 150 LB, FNPT, UL, FM Approved.
Request a quoteTags:
Detail Infomation
Type: Reducing Tee.
Pipe Fitting Material: Malleable Iron.
Fitting Schedule/Class: Class 150 LB.
Pipe Size - Pipe Fitting: 1-1/2 inch x 3/4 inch x 1-1/2 inch.
Fitting Connection Type: FNPT.
Standards: UL, FM Approved: ASME B16.3.
Max. Pressure: 300 psi@150 Degrees F.
Saturated Steam Pressure: 150 psi @ 350 Degrees F.
Temp. Range: -20 Degrees to 350 Degrees F.
Pipe Fitting Material: Malleable Iron.
Fitting Schedule/Class: Class 150 LB.
Pipe Size - Pipe Fitting: 1-1/2 inch x 3/4 inch x 1-1/2 inch.
Fitting Connection Type: FNPT.
Standards: UL, FM Approved: ASME B16.3.
Max. Pressure: 300 psi@150 Degrees F.
Saturated Steam Pressure: 150 psi @ 350 Degrees F.
Temp. Range: -20 Degrees to 350 Degrees F.
