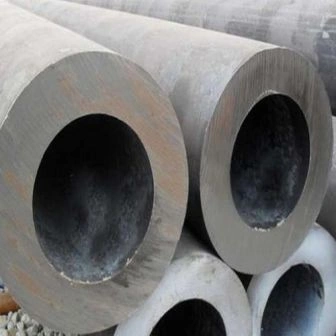

EN 10216-1 Seamless Structural Steel Round Pipe, OD 10.2-711mm
Key Specifications / Features
Model No.: Hits: 5
EN 10216-1 Seamless Structural Steel Pipe Supplier: Structural Steel Pipe, Round Type, Seamless, EN 10216-1, OD 10.2-711mm, WT 1-100mm, Cold Drawn.
Request a quoteTags:
Detail Infomation
EN 10216-1 Seamless 1-30mm Wall Thickness Structural Steel Round Pipe.
PRODUCT DESCRIPTION:
Material: P195TR1, P195TR2, P235TR1, P235TR2.
OD: 10.2mm-711mm.
WT: 1mm-100mm.
Length: Max12000mm.
Technique: Cold Drawn Seamless.
Delivery Condition: Pickled And Annealed, Or As Customer's Requirement.
Appearance: The tubes are free from exernal and internal surface defects that can be detect by visual examination
Application: For Manufacturing Pipelines, Vessel. Euqipment, Pipt Fittings And Steel Structure.
Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test, etc.
QUALITY CONTROL:
Incoming Raw Material Inspection.
Raw Material Segregation to avoid steel grade mix-up.
Heating and Hammering End for Cold Drawing.
Cold Drawing and Cold Rolling, on line inspection .
Heat Treatment, +A, +SRA, +LC, +N, Q+T.
Straightening-Cutting to specified length-Finished Measuring Inspection.
Mechanical testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture, etc.
PRODUCT DESCRIPTION:
Material: P195TR1, P195TR2, P235TR1, P235TR2.
OD: 10.2mm-711mm.
WT: 1mm-100mm.
Length: Max12000mm.
Technique: Cold Drawn Seamless.
Delivery Condition: Pickled And Annealed, Or As Customer's Requirement.
Appearance: The tubes are free from exernal and internal surface defects that can be detect by visual examination
Application: For Manufacturing Pipelines, Vessel. Euqipment, Pipt Fittings And Steel Structure.
Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test, etc.
QUALITY CONTROL:
Incoming Raw Material Inspection.
Raw Material Segregation to avoid steel grade mix-up.
Heating and Hammering End for Cold Drawing.
Cold Drawing and Cold Rolling, on line inspection .
Heat Treatment, +A, +SRA, +LC, +N, Q+T.
Straightening-Cutting to specified length-Finished Measuring Inspection.
Mechanical testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture, etc.
| Chemical Requirement | |||||||
| Steel Grade | C, max | Si, max | Mn, max | P,max | S, max | Cr, max | Mo, max |
| P195TR1 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 0.30 | 0.08 |
| P195TR2 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 0.30 | 0.08 |
| P235TR1 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 0.30 | 0.08 |
| P235TR2 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 0.30 | 0.08 |
| P265TR1 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 0.30 | 0.08 |
| P265TR2 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 0.30 | 0.08 |
